Resistor Box
Factory Direct · corrugatedResistor Box
Efficient thermal dissipation · corrosion-resistant outer enclosure · custom non-standard — robust performance · safety and reassuring · invoice supported

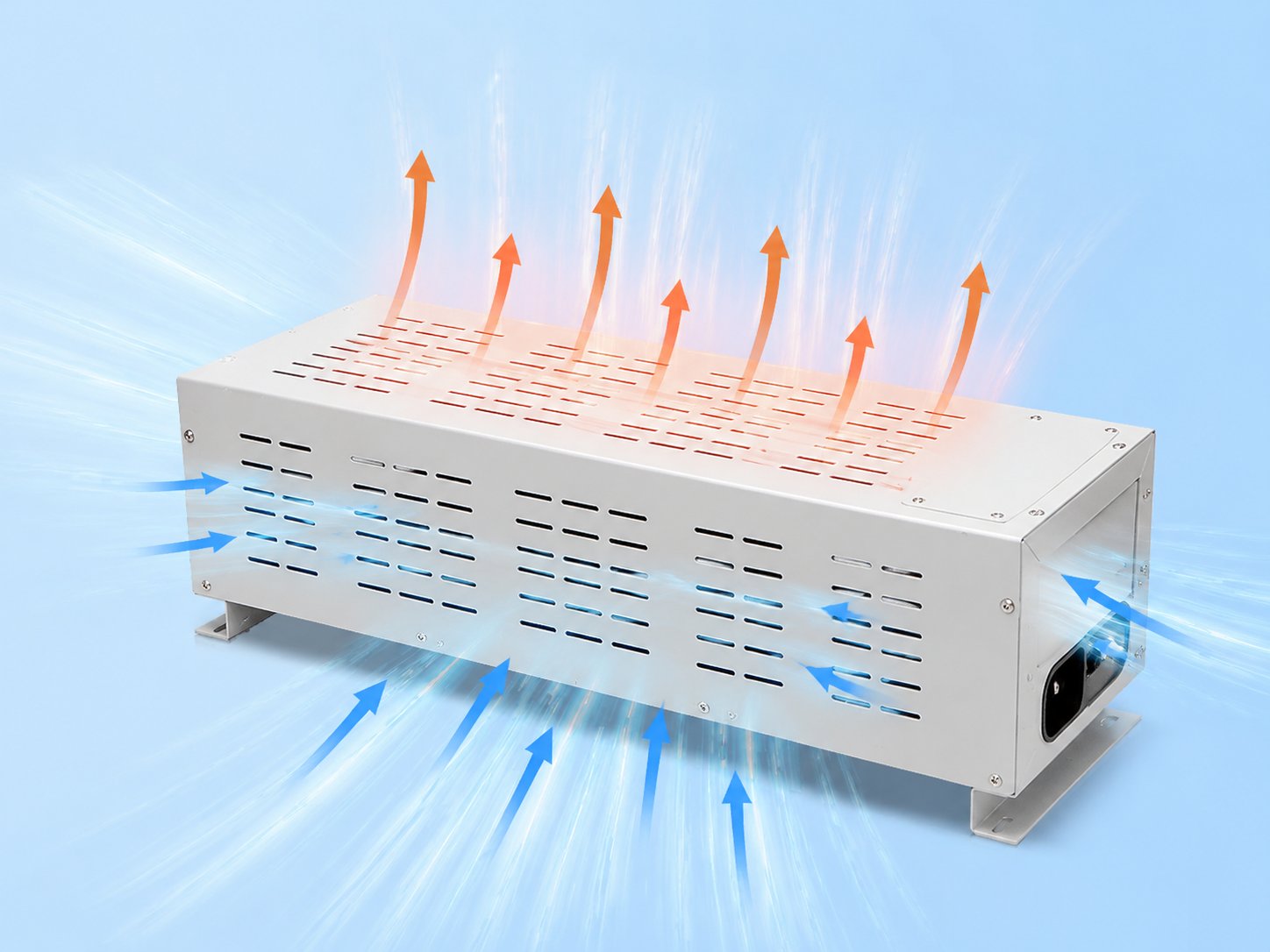

Efficientthermal dissipation holes — flowing airrapidlyinternalremoves heatamount
Top / bottom / side of the enclosure use large-area stamped thermal dissipation hole arrays, paired with internal convection ducts design, allowing internal hot air to be quickly carried away by flowing air. EvenMakelong-termfull-load operation, resistance corebodyTemperatureByYesAvailableControl, AvoidFreeheat accumulationProductMakeBecomeResistancedriftMoveandlifetimelifebelowlower.

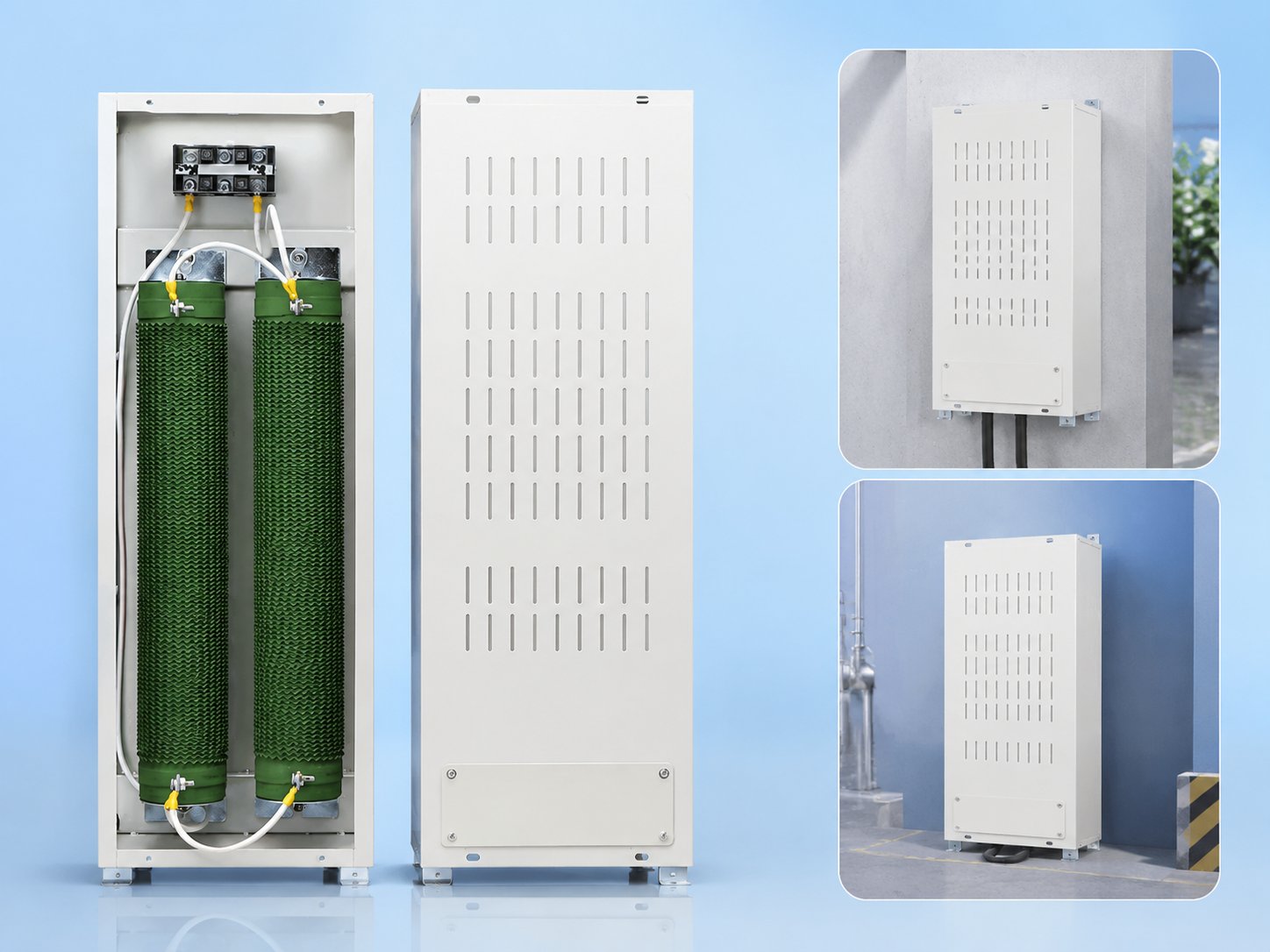

corrosion-resistantouter enclosurebaked enamel — overallEnclosuredesign is elegant and substantial
Outer enclosure uses cold-rolled reinforced steel; surface is phosphate-treated and baked-enamel coated, with strong adhesion, salt-spray and moisture-resistance — paint will not easily peel or rust over long-term use. OverallEnclosureSquarePositiveelegant, reserved standardinstallationPinandwiringHolePosition, SinglePersoncan beCompleteBecomeabovewallorfallGroundinstallation; corrosion-resistantMoredurable, installationSquareEasy.

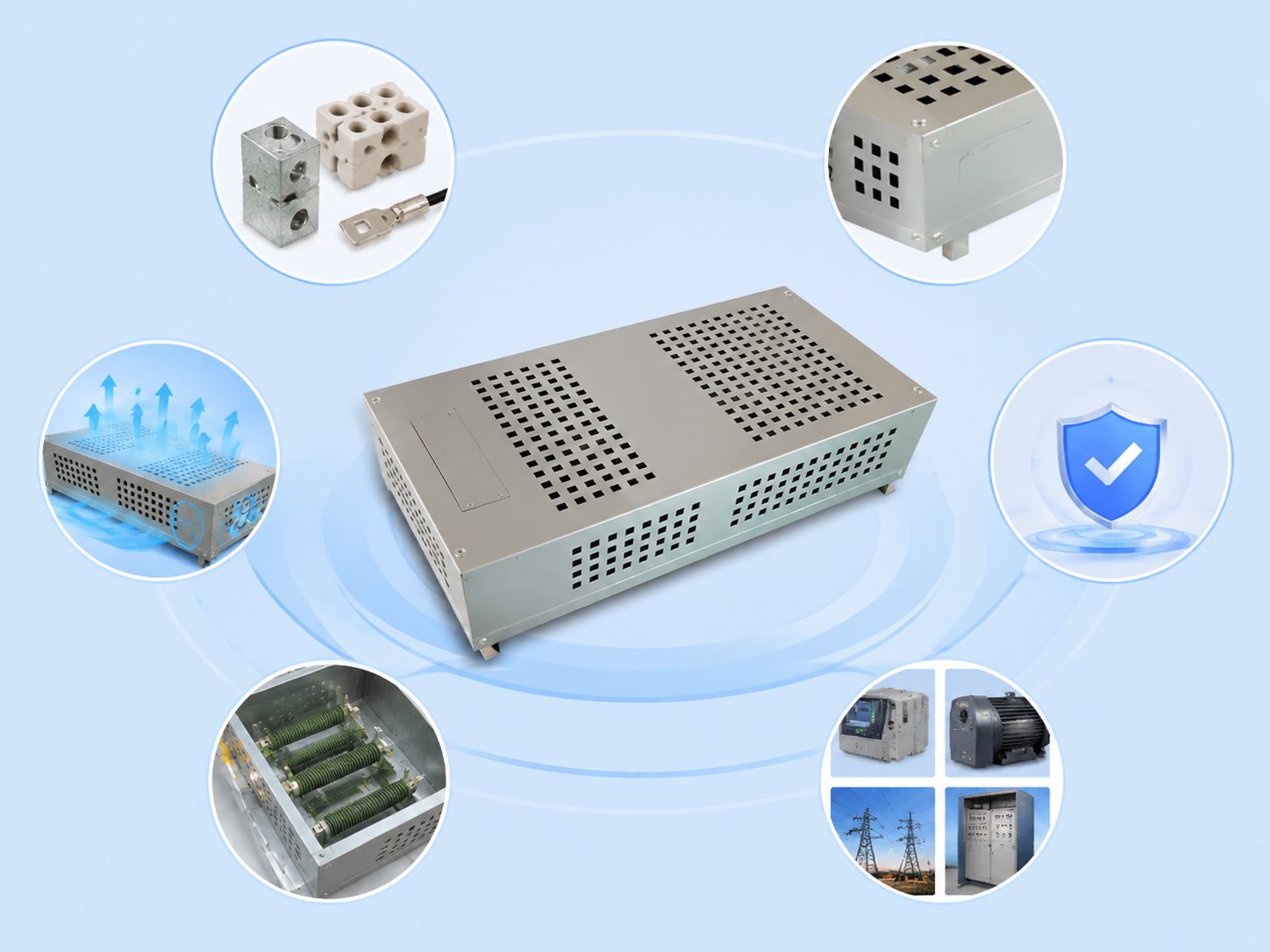

Practical · craftsmanship quality — Six core advantages
① Premium materials: cold-rolled steel + high-temperature ceramic core + tin-plated copper terminals; ② Reinforced enclosure: reinforced stamped steel plate, no deformation under vibration; ③ EffectiveRateImproveRise: natural cooling / strongUrgentWindColdavailable, HeatResistanceShowremarkablelowerLow; ④ Qualityensures: 12 MonthQualityProtect, EachStageFullInspectfactory shipped; ⑤ Structurerobust: internalresistance corebodymultiPointFixed, longRouteOperationLosenotLooseMove; ⑥ ApplicationsWide: inverter braking / ServoServiceenergy dissipation / ElectricMachinestart-up / powerfiltering / load testingetcmultiple scenariossuit.
Basic Parameters
| Parameter | Specification |
|---|---|
| Name | brakingResistor Box (Braking Resistor Box) |
| Material Material | Alloy spray-coated enclosure · high-temperature corrugated resistor |
| Resistance Resistance | 1 Ω ~ 1 kΩ (±5%) |
| Highlights Features | Surface hasthermal dissipation holes · compact and high-power · high-temperature resistant |
| Power | 300W / 500W / 800W / 1kW / 1.2kW / 1.5kW / 2kW / 2.5kW / 3kW / 4kW / 4.8kW / 5kW / 6kW / 7kW / 8kW / 9kW / 10kW / 12kW / 15kW / 18kW / 20kW / 25kW / 30kW / 40kW / 50–100kW |
| Applications | inverters · elevators · cranes · marine · power supply · military · VoyageEmptyVoyageSky · WindForcepower generation |
